ISO/IEC 17025 Accredited Laboratory Internationally recognized testing & calibration standard — valid through 2027
View Certificate
Automotive Seating Specialists

End-of-Line Validation Built for the Seating Industry

Superior Automation Engineers designs and builds complete EOL quality validation systems exclusively for Tier 1 automotive seating suppliers — AI vision, machine vision, robotics, and electrical testing under one roof.

Our Capabilities Talk to an Engineer
EOLQuality focus
AIProprietary vision platform
SSSReal-time production intelligence
T1Tier 1 seating suppliers

Technologies we integrate:

Cognex
Keyence
Universal Robots
FANUC
KUKA
SuperiorSight AI
MES Integration
Core Services

Five core capabilities. One seating specialist.

We deploy our systems individually or in combination to match your production requirements, cycle time, and quality targets.

AI Vision Inspection

SuperiorSight — our proprietary AI-powered defect detection platform. Real-time inference at the line using high-resolution 3D imaging from a robotic arm, with a Windows operator dashboard and full MES integration.

SuperiorSightReal-Time InferenceEdge ComputingMES Integration

Industry-Standard Vision

Proven machine vision using Cognex and Keyence platforms for presence/absence verification, label and barcode inspection, dimensional measurement, and high-speed inline inspection fully integrated with fixture and robotic systems.

CognexKeyence2D / 3D VisionInline Inspection

Force-Guided Robotics

High-precision force-guided robotic systems that react to dynamic, ever-changing environments in real time. Our robotics enable levels of customization and automation that haven't been previously possible — adapting on the fly to part variation, flexible materials, and complex assembly geometries.

Force ControlUniversal RobotsFANUCKUKAAdaptive Path

Electrical Testing

Complete electrical validation for automotive seat assemblies — connection verification, motor functional testing, heat mat and thermal circuit validation, ECU functional checks, and safety system resistance measurement.

ResistanceVoltageCurrentContinuity

Production Intelligence Software

Superior Status Server — our real-time monitoring and diagnostics platform. Multi-station dashboards, automated root cause analysis, AI-powered video guide builder, and complete production analytics with full traceability.

Status ServerReal-Time AnalyticsAI Video GuidesRoot Cause Analysis
Test Coverage

Everything inside a vehicle seat — validated.

Our systems are configured to validate the full range of electrical, functional, and communication subsystems within automotive seat assemblies.

Module Communications

  • LIN bus communication validation
  • CAN bus module messaging verification
  • ECU-to-ECU handshake & response testing
  • Seat memory module read/write validation
  • FAM (Final Assembly Module) communication testing
  • Heat & vent controller bus diagnostics

Motors & Actuators

  • Fore/aft, up/down, recline motors
  • Lumbar adjustment motors
  • Headrest adjustment motors
  • Motor current draw & speed validation

Thermal & Comfort

  • Seat heat mat resistance validation
  • In-seat ventilation fan testing
  • NTC thermistor resistance checks
  • Heat zone circuit continuity

ECU & Control Modules

  • Seat memory module validation
  • Heat & vent control ECUs
  • PODS — Passenger Occupancy Detection
  • OCS — Occupant Classification System

Safety Systems

  • Seatbelt buckle resistance
  • Airbag squib resistance
  • Pretensioner circuit validation
  • Safety-critical continuity checks
Technology

Best-in-class platforms, purpose-configured for seating

We integrate industry-leading hardware and develop the software that ties it together — so your team gets a system that's reliable, maintainable, and built to your spec.

Vision Systems
Cognex
Keyence
SuperiorSight AI (Proprietary)
Edge AI Computing
Robotics
Universal Robots (UR)
FANUC
KUKA
Communications
LIN Bus
CAN Bus
Ethernet / TCP-IP
Serial / RS-232
Software & Data
Superior Status Server
Custom Test Software
MES / Database Integration
Traceability & CSV Logging
Production Software

Superior Status Server

A learning system that diagnoses failures, guides repairs, and gets smarter with every resolution.

Included with every EOL system

Automatically diagnoses root causes, ranks probable failures with confidence percentages, and walks technicians through the fix — step by step. Every resolution feeds back in, so the system learns and improves over time.

Business Impact

  • Reduce mean time to repair (MTTR) with automated diagnostics
  • Eliminate guesswork — real measurements, not assumptions
  • Reduce operator training time with guided troubleshooting
  • Complete audit trail for traceability and warranty investigations
  • Identify systemic supplier or design issues early

Multi-Station Monitoring

All stations, one dashboard — live status, health indicators, and countdown timers.

Automated Diagnostics

Connector health checks triggered automatically — resistance, voltage, and current validated in seconds.

AI Video Guide Builder

Customizable video guides with AI-generated steps — operators follow along on any device.

Root Cause Analysis

Top 3 probable causes with confidence scores — improving automatically from technician feedback.

Production Analytics

Pass rates, top failures, station health, and shift metrics — all real-time.

Full Traceability

Complete event timeline with resolution capture — full audit trail for warranty and quality.

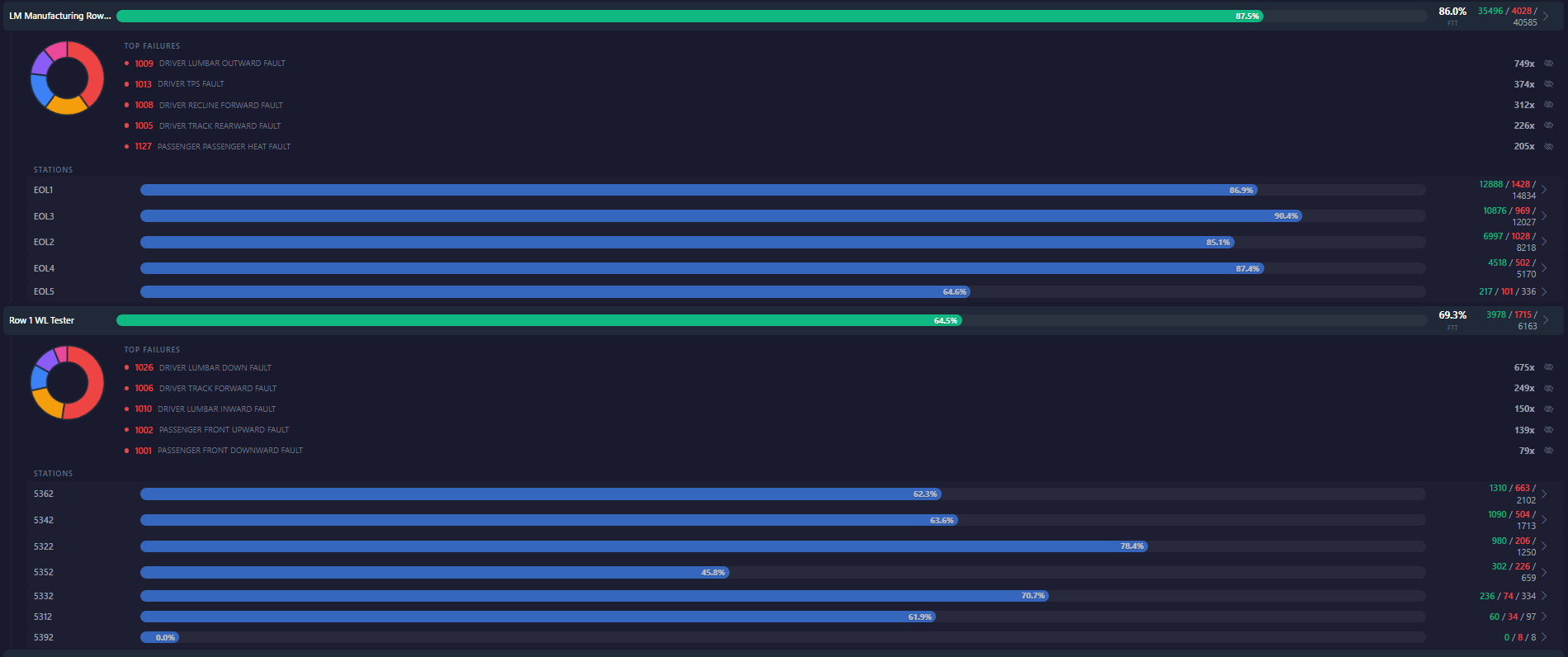

Multi-station monitoring overview with pass rates and top failures
Station Overview — Pass rates, top failures, per-station breakdown

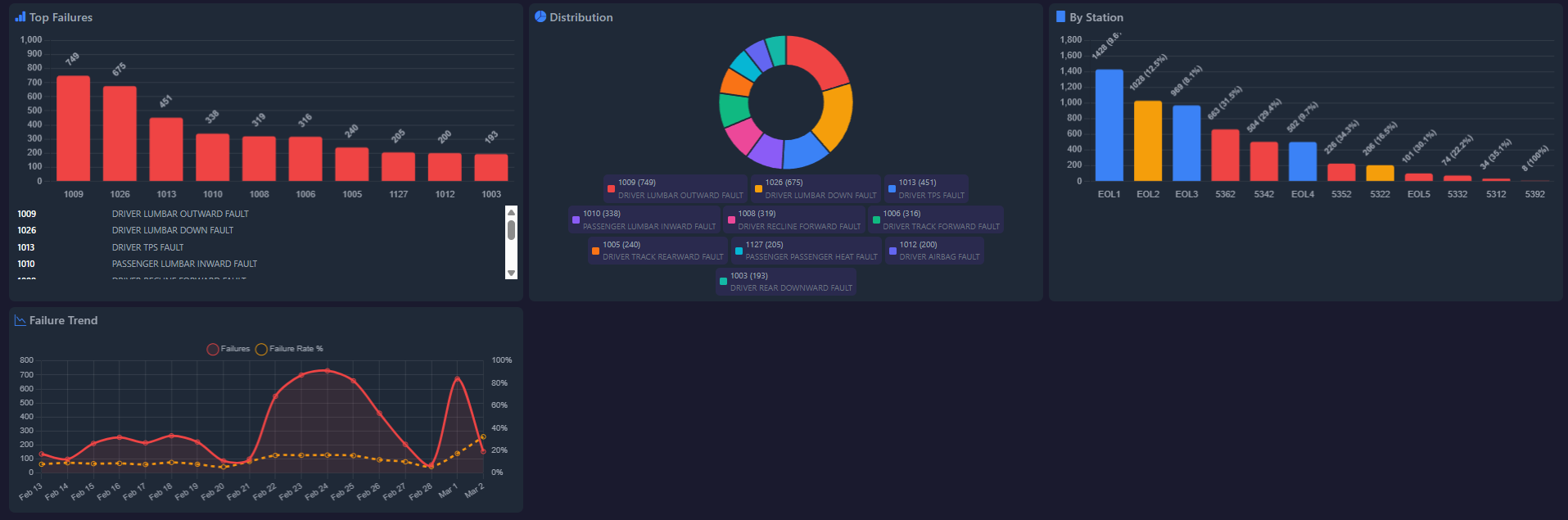

Production analytics — top failures, distribution, failure trends
Analytics Dashboard — Top failures, distribution, trends by station

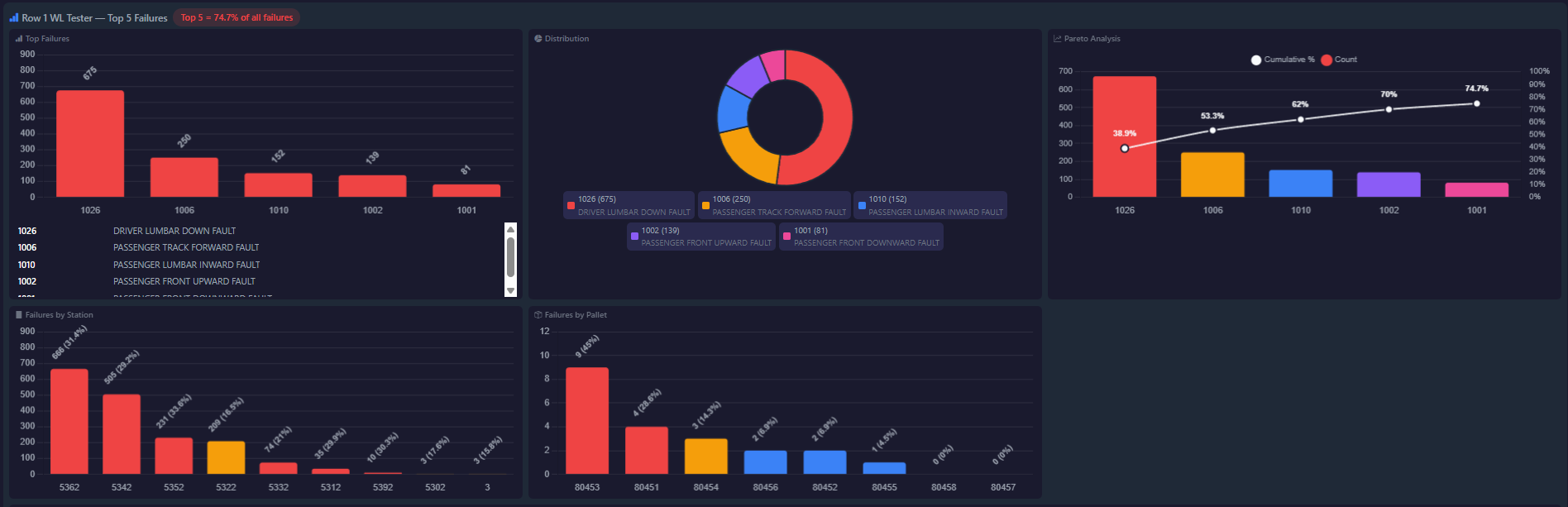

Pareto analysis — top 5 failures with cumulative percentage and by-station breakdown
Pareto Analysis — Top 5 failures, by-station and by-pallet breakdown

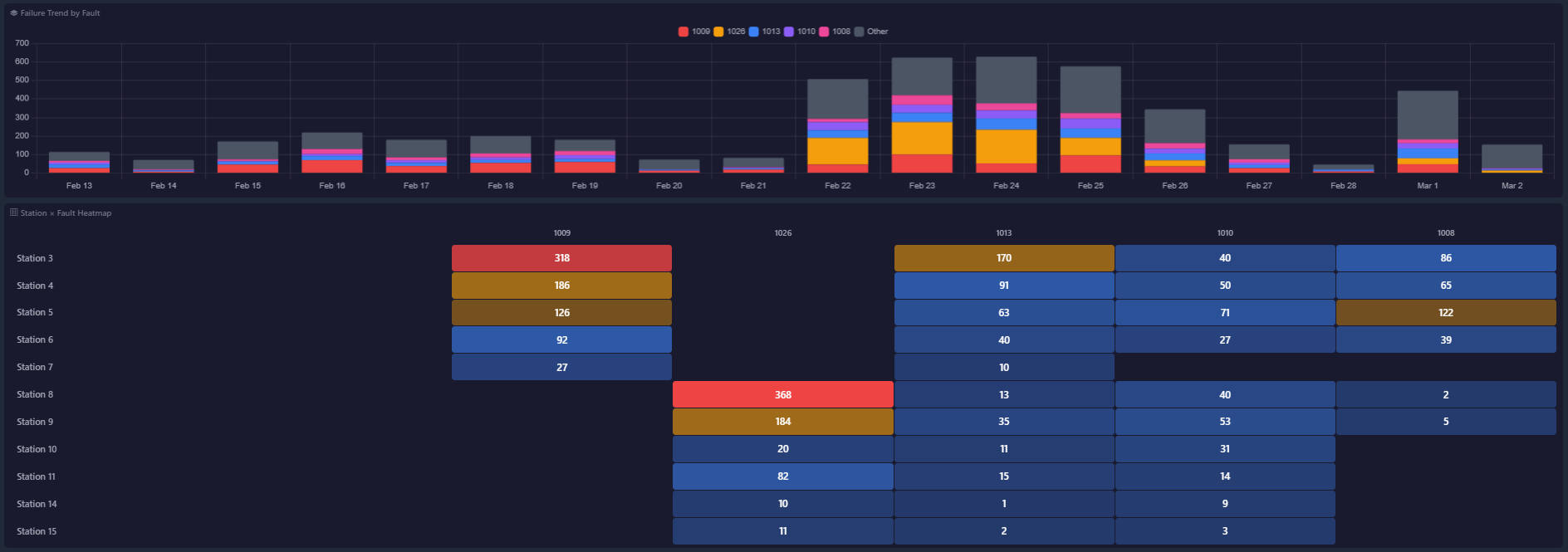

Station x fault heatmap with failure trend by fault code
Fault Heatmap — Failure trends by fault code with station cross-reference
How We Work

From requirements to production line — fully managed

We handle the full project lifecycle so you don't have to coordinate between multiple vendors.

01 — Discovery

Requirements Review

We analyze your component, test specs, cycle time, and facility constraints to define the right system.

02 — Design

System Design

Custom fixture, vision, and electrical architecture with design review before build begins.

03 — Build

Build & Integration

Hardware fabrication, software development, and full system integration in our facility.

04 — Validation

FAT / SAT

Factory and Site Acceptance Testing to confirm all spec requirements are met before handoff.

05 — Support

Ongoing Support

Remote and on-site support, software updates, and modifications as your product evolves.

Why Superior Automation Engineers

What sets us apart

We're not a generalist integrator. Everything we build is for the seating industry — and that depth shows.

ISO/IEC 17025 Accredited

We are ISO/IEC 17025 accredited — the internationally recognized standard for testing and calibration laboratories. This accreditation validates the technical competence of our systems and the integrity of our test results, giving Tier 1 customers confidence in every measurement we produce. View our certificate

Proprietary AI Vision

SuperiorSight is our in-house AI defect detection platform — not a licensed third-party tool. We own the software, we can customize it to your defect library, and we support it directly.

Hardware + Software In-House

We design the fixture, integrate the vision and robotics, and write the test software ourselves. You deal with one vendor — not three — and every system is built to work together from day one.

Engineering-Led Partnership

When you call us, you reach the engineers who built your system. We're a focused team — not a large support queue — and we're invested in keeping your line running.

Contact Us

Let's talk about your EOL requirements

Whether you're scoping a new system, upgrading an existing line, or evaluating vendors — we'd like to understand your project and see if we're a fit.

734-752-1701
ryan.welsh@supautomation.com
Metro Detroit, Michigan

ISO/IEC 17025 Accreditation

Superior Automation Engineers is accredited under ISO/IEC 17025 — the international standard that certifies technical competence in testing and calibration laboratories. This accreditation demonstrates that our measurement systems produce valid, traceable, and reproducible results.

This certificate validates that our testing laboratory meets the requirements of ISO/IEC 17025 — valid through November 14, 2027. Download PDF
